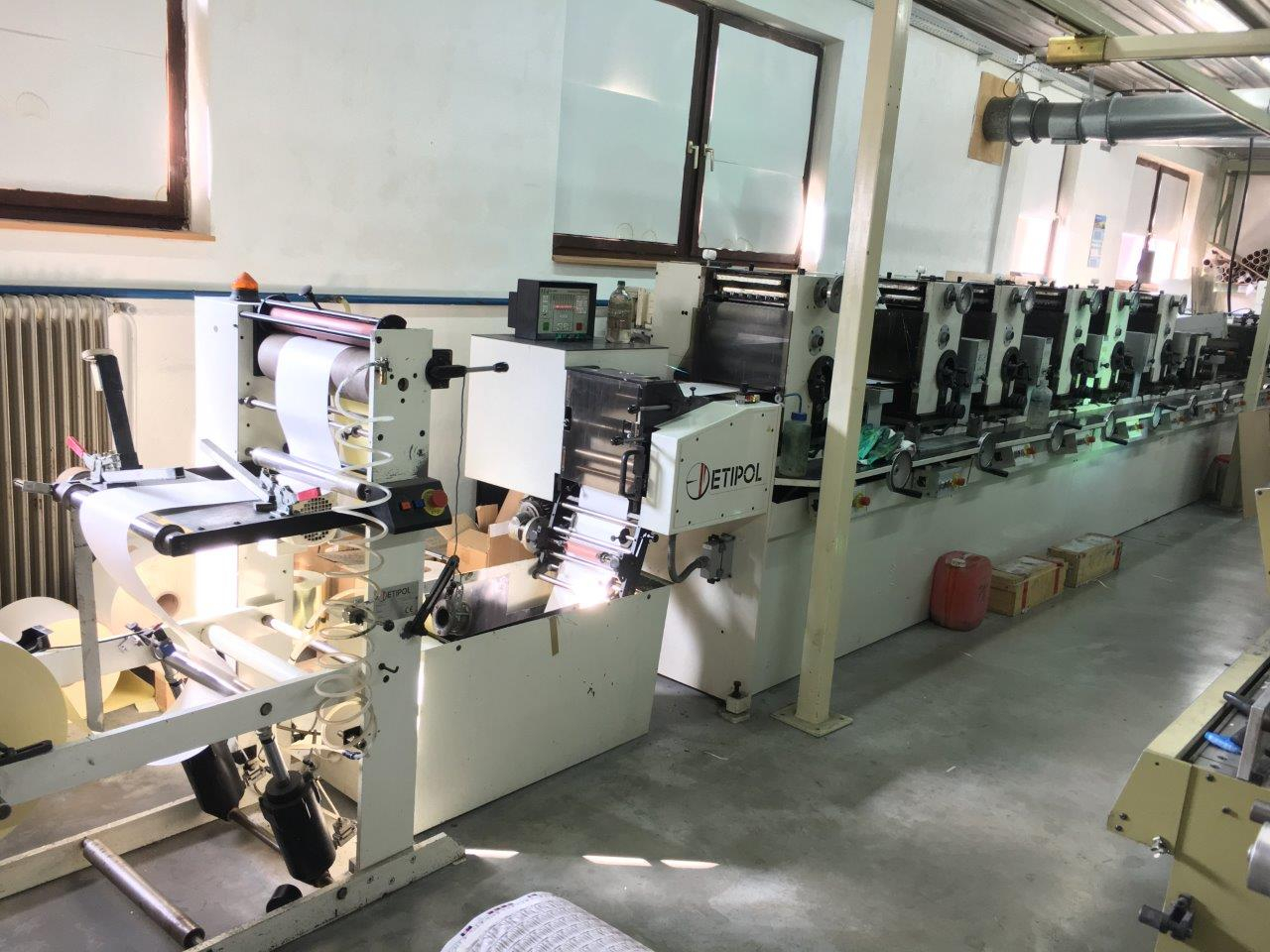

Reference number: 1047
Manufacturer: Etipol
Model: Combi 270
Year of production: 1998
Format / Working width: 270 mm
Colors / Number of units: 7
Available: immediately
- maximum web width: 270 mm
- maximum print width: 260 mm
- unwind with splice table
- 6 semi-rotary letterpress printing units
- flexo varnish with sealed chamber doctor blade
- 2 sets of plate cylinders
- stepless feeding from 50 mm to 280 mm (2-11'')
- maximum print length full rotary 304,80 mm
- inter-station UV drying system
- 3 Rotary die-cutting positions with 2 magnetic and 1 perforation cylinders
- computer controlled servo driven in-feed and pull through
- free standing rewind unit including slitting and matrix waste rewind
- maximum speed in step mode 14.000 imps per hour
- maximum speed in full rotary mode 60 m/minute
- video web inspection
- all availabe spare parts, manuals and electrical drawings
- also included is a plate making system
