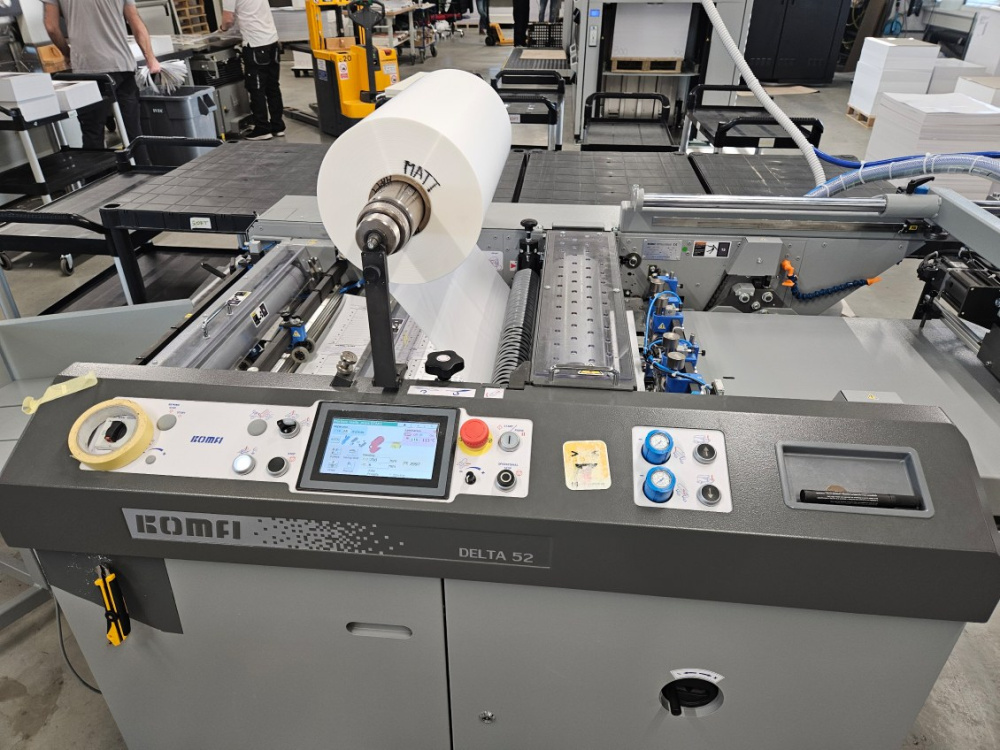

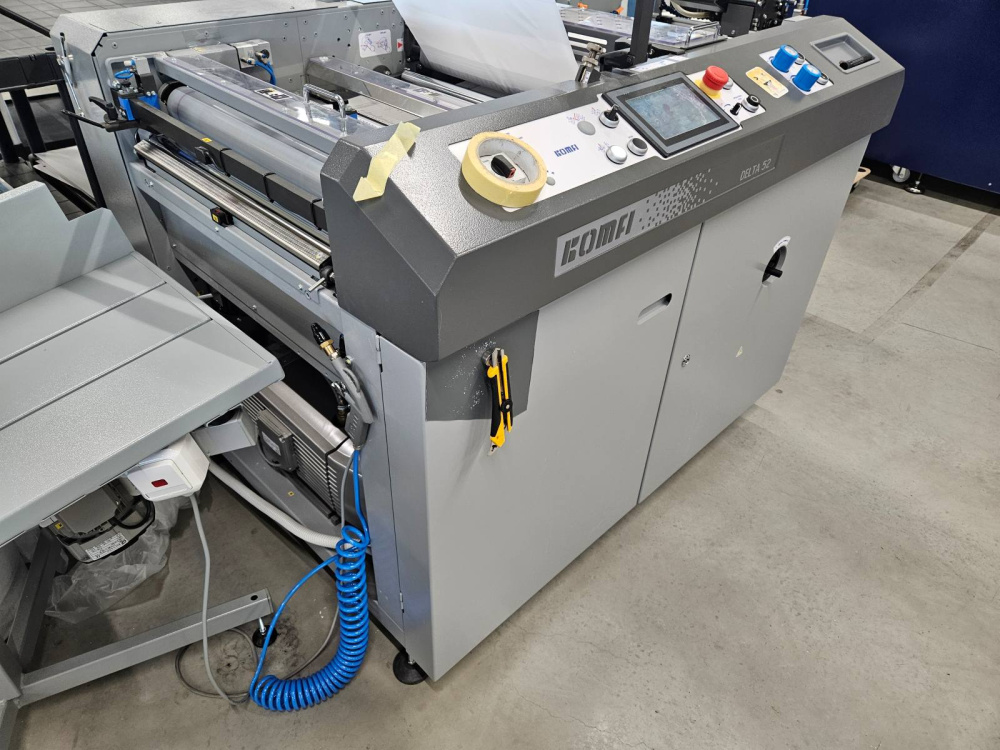

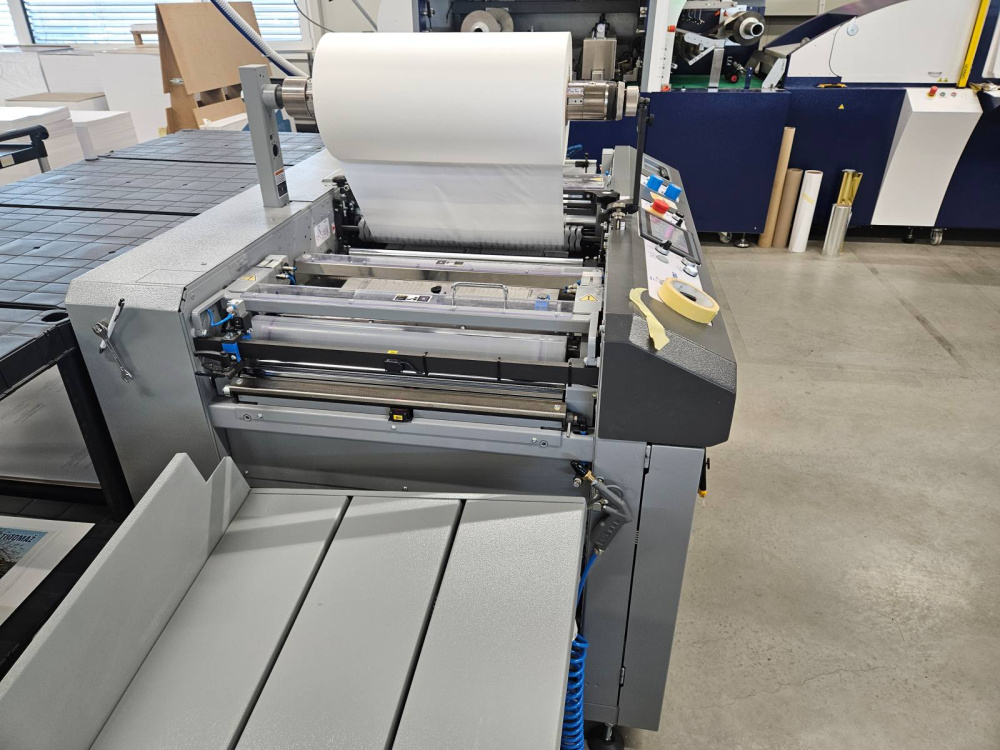

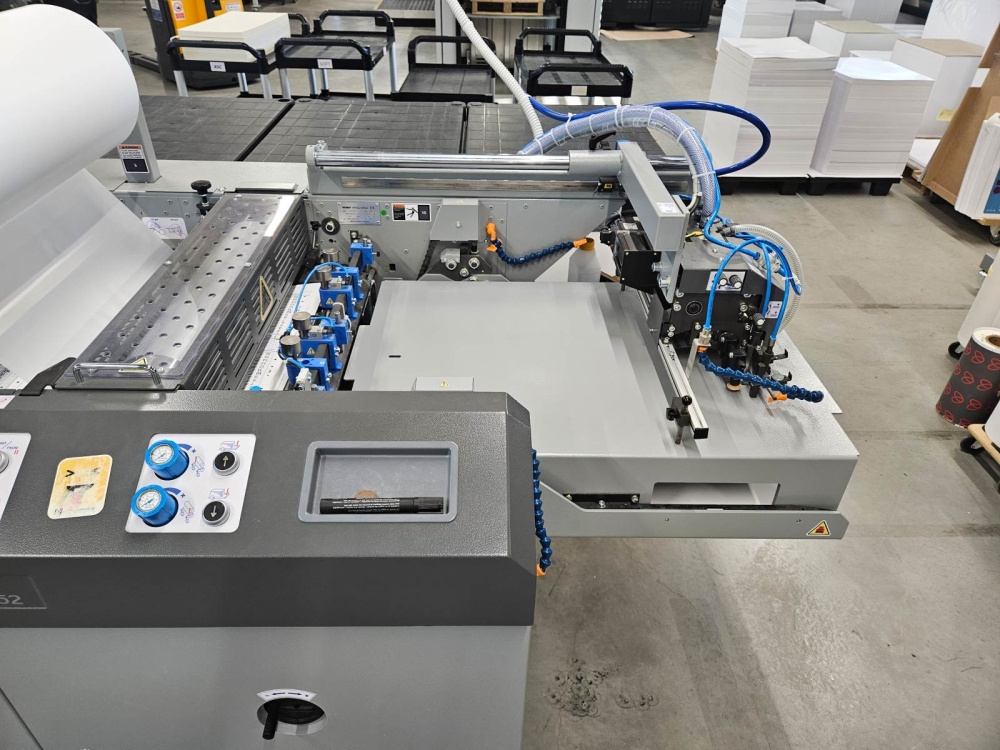

Komfi Delta 52

Technical specification

• Automatic feeder with fixed lifting table
• Single action Komfi feeding head
• Vacuum pump⁠
• ⁠Automatic sheet overlap control
• ⁠Mis-feeding detection
• ⁠Laminating cylinder heated by 3-zone electro-resistance heater
• ⁠Temperature drop detection
• *Teflon* pressure roller
• ⁠Air pressure decrease detector
• Airshaft for film unwinding
• Combined de-curling unit (bar and roller)
• Automatic sheet separation using built-in perforator
• Pneumatic snapping unit is electronically controlled
• Speed adjustable separating roller
• Sheet separation detector
• Fixed delivery desk

Technical Parameters:

• Maximum speed of lamination: 35 m/min
• Maximum sheet dimensions: 54 × 76 cm
• Minimum sheet dimensions: 20 × 20 cm
• Paper weight: 115-600 g/m2
• Thickness of laminating film: 24-50 pm
• Kind of laminating film: OPP, PET, Nylon
• Time of laminating roll warm up (25÷100 °C): 3 min
• Sheet overlap accuracy (at constant laminating speed): +1 mm
• Machine dimensions including delivery desk (L * W * H): 268 × 123 × 144 cm
• Air supply: 6 bar
• Air consumption at stable run: 60 l/min

Detailed specification on inquiry!
